High Accuracy Valve Guide And Seat Boring Machine VS50 Precision Boring Made Easy

Name: High Accuracy Valve Guide And Seat Boring Machine VS50 Precision Boring Made Easy
Brand: TIMEWAY
Price: 15 USD

High Accuracy Valve Guide And Seat Boring Machine VS50 Precision Boring Made Easy Manufactures

Place of Origin : Henan, China

Brand Name : TIMEWAY

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2024

Warranty of core components : 1 Year

Core Components : PLC, Engine, Motor

Warranty : 1 Year

Key Selling Points : Competitive Price

Weight (KG) : 1260

Applicable Industries : Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction works

Showroom Location : Egypt, Canada, Germany, Philippines, Saudi Arabia, Indonesia, Russia, Thailand, Argentina, Romania, South Africa, Japan, Australia

Product name : Valve Seat Boring Machine

Model : VS50

Type of drive system : Air/Electric

Max. length of cylinder head : unlimited

Max. width of cylinder head : 500 mm

Max. height of cylinder head : 450 mm

Max. boring dia. : 16-50 mm

Spindle speed : 100-1200rpm

Spindle travel : 200mm

Machine dimensions( LxWxH) : 1450x1050x2170mm

Price : $15,600.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

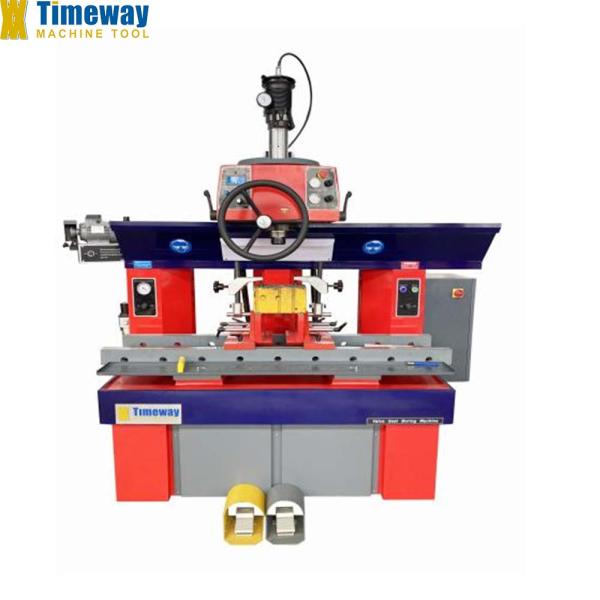

High Accuracy Valve Guide And Seat Boring Machine VS50 Precision Boring Made Easy

Product Description

Features:

1. Valve Seat Boring Machine Model: VS50, with high availability meets the requirements of boring, reaming and cutting machining for high accuracy valve guides and valve seats.
2. Triple air-float patented centering system and powerful spindle with built-in motor.
3. Designed for the valve seats from the smallest to the bigger diameter.
4. This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 14mm to 120mm.
5. To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.

Specification

Specification	VS50
Type of drive system	Air / Electric
Max. length of cylinder head	unlimited
Max. width of cylinder head	500 mm
Max. height of cylinder head	450 mm
Clamper rotary angle	45° / -15°
Max. boring dia.	16 – 50 mm
Work head longitudinal floating travel	900 mm
Work head cross floating travel	40 mm
Sphere – cylinder travel	9 mm
Power of spindle	1.5kw
Spindle speed	100-1200rpm
Spindle travel	200mm
Max. spindle incination	5.5°
Electric supply	380V/50HZ/3PH or 220V/60HZ/3PH
Required rated air pressure	6 Bar / 87 PSI
Required max. air flow	300 L / Min
Machine weight	1260kg
Machine dimensions( LxWxH)	1450x1050x2170mm

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
